Product Overview:

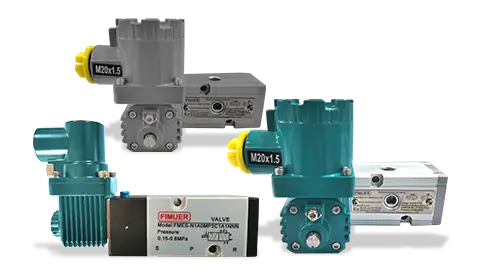

The electromagnetic directional valve is the core control component in the valve automation control system. Selecting high-quality electromagnetic directional valves is a reliable and safe guarantee for switch-type valves. According to the division of industrial site areas and explosion-proof standards by the Chemical Industry Department, products of corresponding explosion-proof grades should be selected. The operating environment temperature of the product should meet the maximum temperature limit of the site. Based on the corrosive environment at the site, products of corresponding materials should be selected.

Structural form: Two five-way single-electrically-controlled / double-electrically-controlled

Installation form: NAMUR / Tubular

Method: Leading approach

Pressure range: 0.15 - 0.8 MPa

Product Features:

Sturdy and flexible design

The aluminum or stainless steel casting shell, and all the metal components fastened externally are made of stainless steel.

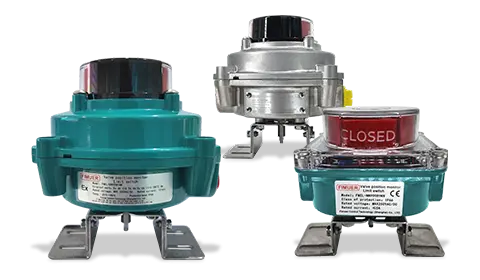

The switch position can be clearly identified by the indicator.

Quickly adjustable cam

Spring-loaded spline cam: -- No adjustment required after initial setup     -- Can be set without tools

Dual or multiple interface lines

Anti-loosening Bolt (FL-5): -- During assembly and disassembly, the bolt will not come off when attached to the upper cover.

Easy to install

Compliant with NAMUR standard for connecting shafts and installation brackets

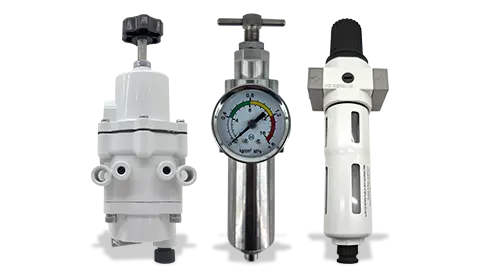

The downstream pressure will be sensed by the internal pressure sensor and applied to the lower surface of the valve diaphragm. When the downstream pressure reaches or exceeds the set pressure, the valve plug will push against the valve core and block the flow of fluid through the pressure regulator. When the downstream flow demand increases, the downstream pressure will slightly decrease, causing the spring to extend, the valve stem to move downward, and the valve plug to separate from the valve core, allowing the fluid to pass through the pressure reducing valve.

Product Features:

· The installation position of the pressure gauge can be selected.  · Optional stainless steel structure.

· Compact structure and light weight  · No air loss

· Easy to maintain  · Comes with a filter

· Strong structure

Product Overview:

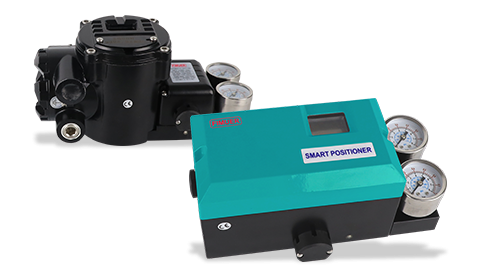

The FMESP adopts a microcontroller electronic control unit and an air flow meter with PID precise algorithm. It is equipped with buttons, an LCD dot matrix display, HART communication and MSBUS communication functions. It adopts a modular structure, which is compact, sturdy and well-designed. It has high cost-effectiveness, simple maintenance and avoids unnecessary expenses for users.

Input signal range: 4 ~ 20mA; The range is 4 ~ 12mA and 12 ~ 20mA.

Feedback signal range: 4 ~ 20mA; Sub-range 4 ~ 12mA, 12 ~ 20mA.

Equivalent resistance: 425Ω (625Ω; HART protocol type)

Control accuracy: 0.5%

Product Overview:

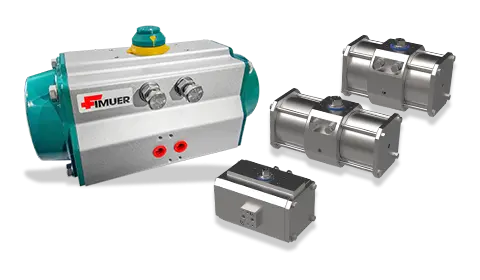

The FMEPA-DR/SC new type gear-rack pneumatic actuator is a product developed by FIMUER using the latest global technologies. It is innovatively and optimally designed through a CAD three-dimensional model, featuring an elegant and compact modern appearance. It also utilizes new materials and new processes to ensure higher quality and performance of the product. With multiple specifications available, it is more cost-effective. The product fully complies with the latest international standard technical specifications and meets the current and future demands.

The gear-rack double-piston symmetrical structure design ensures rapid and smooth operation, high precision, and large output power. By simply changing the assembly position of the pistons, reverse rotation can be achieved.

② The high-quality aluminum alloy cylinder body is compressed, and its internal holes and external surfaces are precisely machined and undergo hard anodizing treatment (in special cases, anodizing + Teflon coating). This results in a longer service life and a lower friction coefficient.

Product Overview:

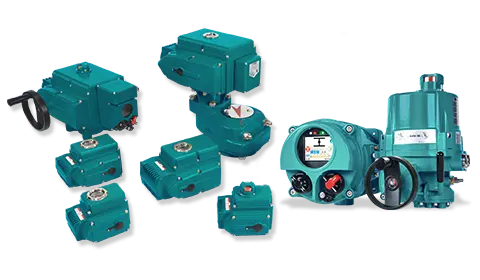

The FMEM electric actuator is a new-generation product developed by our company based on the latest technology.

The actuator is a device that converts the rotational force of the motor through multiple stages of reduction gears, worm gears, etc., and ultimately through the output shaft, to switch the valve in a 90° rotation form. It features high intelligence, high protection performance, small size, high integration, long service life, and stable performance.

The product adopts various power supply voltage methods, providing stronger usability. The product casing is made of aluminum alloy, making the equipment more lightweight. At the same time, it must ensure the compressive resistance of the product and the safety of the internal electronic control. The product adopts a closed-sealed design, and the internal is equipped with moisture-proof resistors. It is widely applied in various industrial fields, including: metallurgy, petroleum, chemical industry, power plants, dyeing and printing, water treatment, shipbuilding, papermaking, food processing, pharmaceuticals, and building automation systems, among many others.
